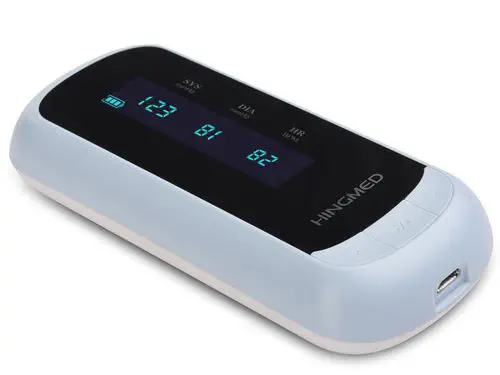

2 Sizes Cuff Wearable One-piece Design Ambulatory Blood Pressure Monitoring ESH Certified
WBP-02A
Dimension
119 x 52 x 21 mm (4.7″ x 2.1″ x0.8″)
Net Weight
105g ( 3.7oz ), including battery
Cuff Size
Large 22-36cm (8″-14″);
Extra large 33-43cm (13″-17″)
PC Requirement
USB port;
Microsoft Win2003, WinXP, Win7 or above version.
Display
OLED screen
Working Condition
Tem: 5℃～40℃;
RH: 10%～95%;
Atmospheric pressure: 70KPa～106KPa.
Storage Condition
Tem: -20℃-+55℃;
RH less than 95%;
Atmospheric pressure: 70KPa～106KPa;
No corrosive gases and well-ventilated
Safety
Max inflation pressure 290mmHg;
Valve open for deflation automatically upon power shutting off;
Max measurement circle 120s.
Measuring Method
Oscillometry
Operating Mode
Automatic continuous running
Measurement Interval
More individual programming intervals options (5, 10, 15, 20, 30, 45, 60, 90, 120min);
Awake, asleep, and 3 special time period setting for programming.
Measuring Range
Systolc: 40-260 mmHg;
Diastolic: 20-210 mmHg;
Pressure: 0-290mmHg;
Heart rate: 40bpm-200bpm
Measuring Accuracy
Pressure: ± 3mmHg;
Pulse: ± 3bpm
Internal Storage
Saving 300 readings maximum
Data Connection
USB data cable
Noise
≤45db
Ingress Protection
IP22
Calibration
At least once per two years
Battery Running Time
Support 200 times measurement
Battery Charging Time
2.5 Hours
Rated Capacity
1000mAh
Power Supply
3.7v Li battery
Main Unit Warranty
1 Year
