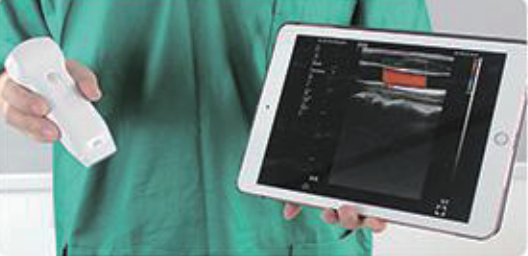

96 Elements Linear/Convex/Phased Array 3 In 1 Wireless Ultrasound Probe
Cprobe-4CPL
Categories: Convex Probe, Imaging, Linear Probe, Phased Array
Specifications 1
Specifications 2
Specifications 1
Weight
250g
Dimension
156x60x20mm

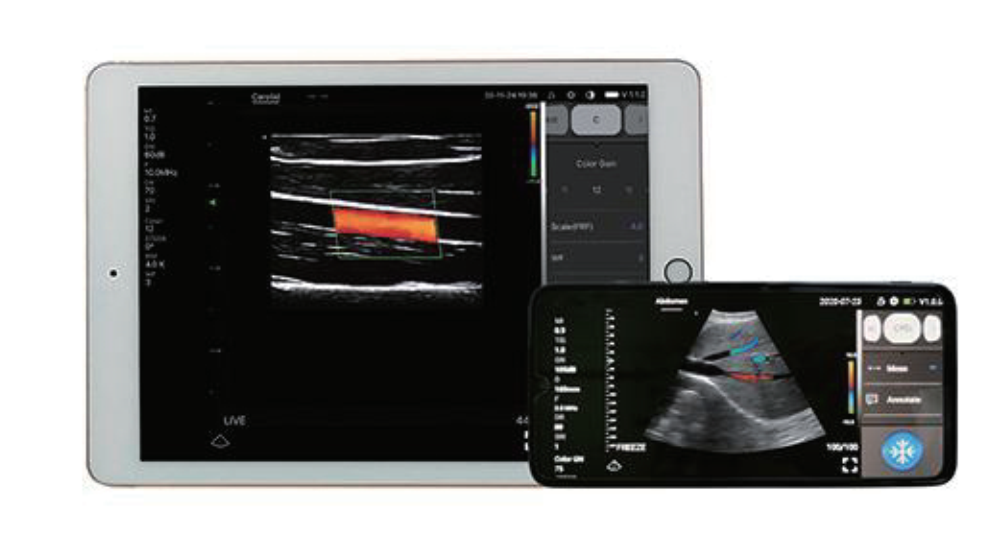

Display mode
BB/M,and Color,PW,PDI
Scanning mode
Electronic array
Frequency
Convex/Phased array probe: 3.5MHz/5MHz, Linear probe:7.5MHz/10.0MHz
Display Depth
Convex 90/160/220/305m, Linear20/40/60/100mm
Scan angle and width
Convex 50°, Phased array 80°linear 40mm
Measure
Length,Area,Angle,Obstetrics
Specifications 2
Image Adjust
Gain, DYN, Focus, Depth, Harmonic, Denoise
Puncture assist function
the function of in-plane puncture guide line out-of-plane puncture guide line automatic blood vessel measurement and the enhancement function of needle point development.
Cineplay
auto and manual, frame scan set as 100/200/500/1000
Image frame rate
18 frames/second
Working system
Apple, iOS and Android, Windows
Battery working time
3hours

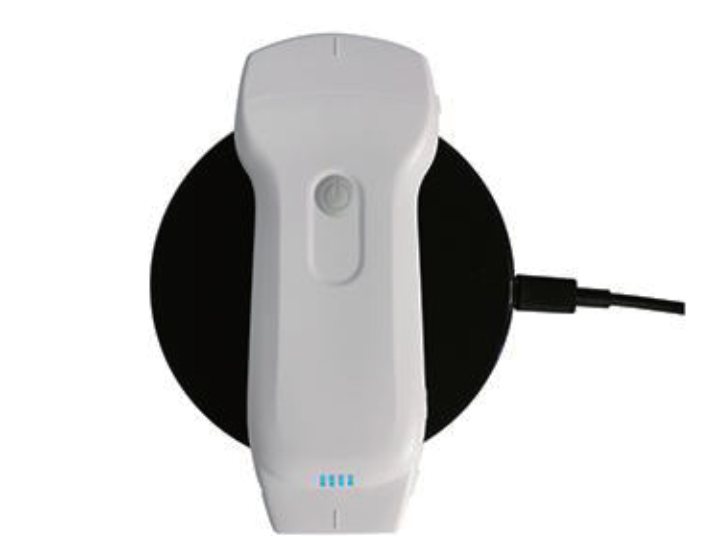

Charge
by wireless charger,2 hours
