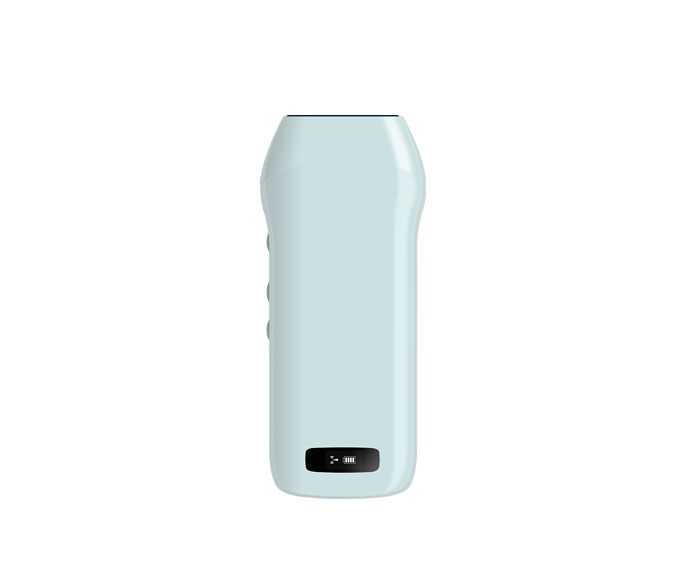

192 Elements 7.5-10Mhz Linear Color Doppler Pocket Ultrasound Scanners
C10CX
Categories: 192, Color, Imaging, Internal Medicine, Linear Probe, Primary Care, Sports Medicine
Specifications
Specifications 2
Specifications
Probe
Wireless linear probe
Battery working time
3hours (Working time), 12hours (Stand by time)
Gain
40-110Db
Display mode
B, B/M, Color, PW, PDI, B+B
Supporting system
IOS, Android, Windows
Presets
Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve,Aesthtics, user1， user2
Software Adjustable Parameters
GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
Scanning Depth
20-40-60-100mm
Elements
192
Frequency
7.5-10Mhz
Specifications 2
Screen
Tablet, Smart phone, PC
Frame
24s/f
Channel
32
Measure
B: Length, Area, Circumference, Angle, Trace, Distance
B+M: Heart rate, Time, Distance
B+PW:Velocity,Heart rate(2), S/D, Depth
WiFi Type
Built-in WiFi, 802.11g/20MHz/5G/450Mbps
Power
by built-in 4200mAh battery
