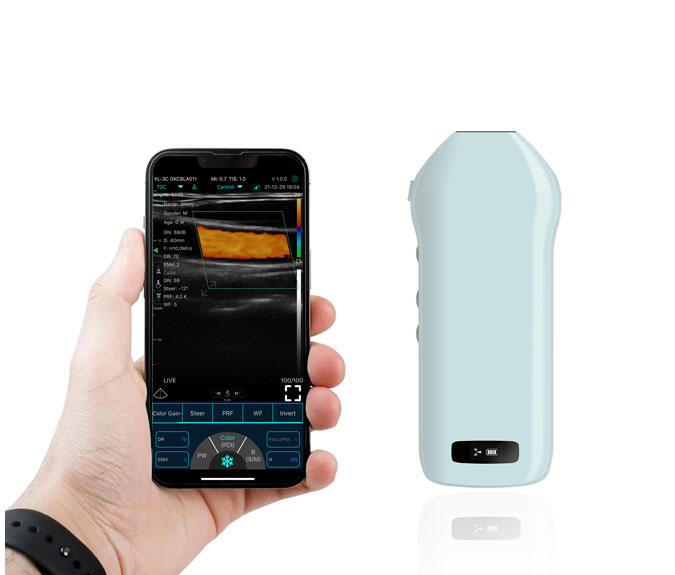

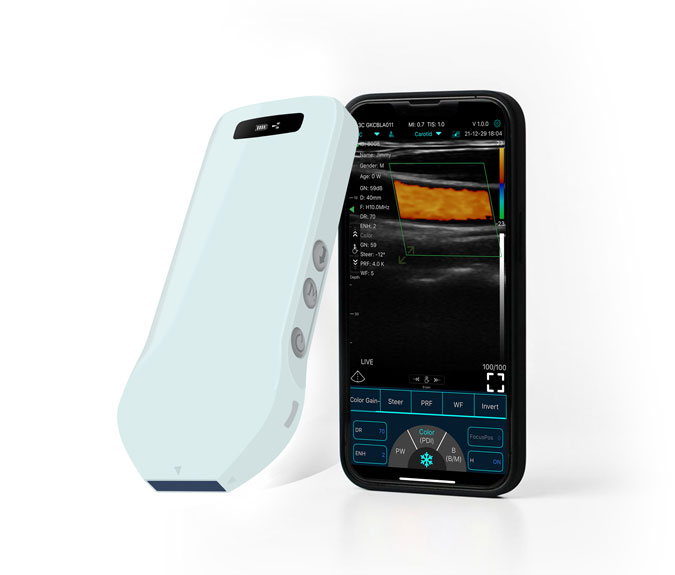

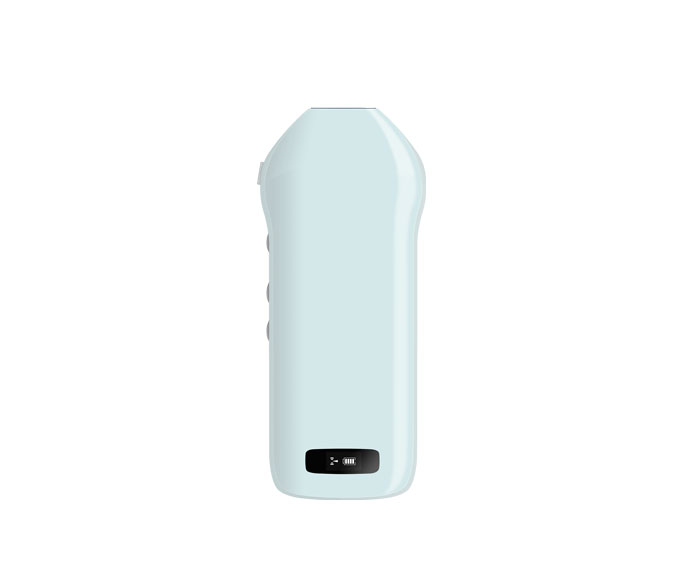

192 Elements 10-14Mhz Linear Color Doppler Pocket Ultrasound Scanners
C10CS
Categories: 192, Cardiology, Color, Imaging, Linear Probe
Specifications
Specifications 2
Specifications
Probe
Wireless micro linear probe
Elements
192
Charge
by built-in 4200mAh battery
Battery working time
3hours (Working time), 12hours (Stand by time)
Display mode
B, B/M, Color, PW, PDI, B+B
Presets
Thyroid, Small parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve，Aesthetics, Eye,user1 user2
Scanning Depth
20-80mm
Frequency
10-14Mhz
Software Adjustable Parameters
GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote
Specifications 2
Screen
IOS/Android/Windows
WiFi Type
Built-in WiFi, 802.11g/20MHz/5G/450Mbps
Channel
32
Frame
24s/f
Measure
B: Length, Area, Circumference, Angle, Trace, Distance
B+M: Heart rate, Time, Distance
B+PW:Velocity,Heart rate(2), S/D, Depth
Power
by built-in 4200mAh battery
WiFi Type
Built-in WiFi, 802.11g/20MHz/5G/450Mbps
