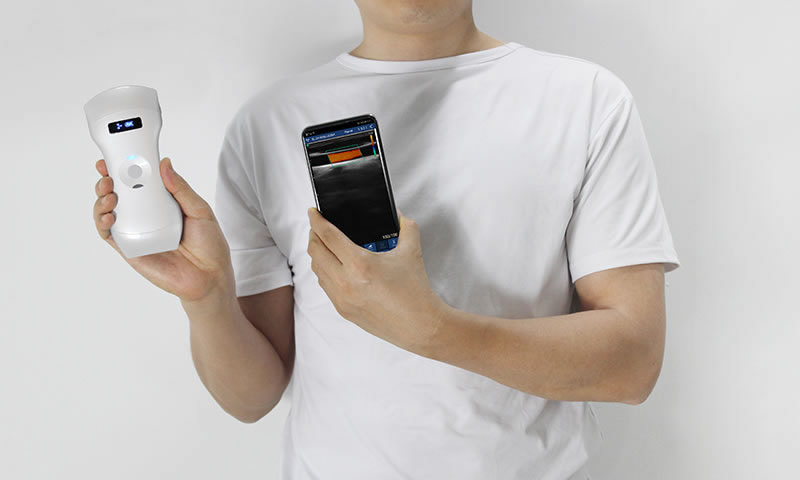

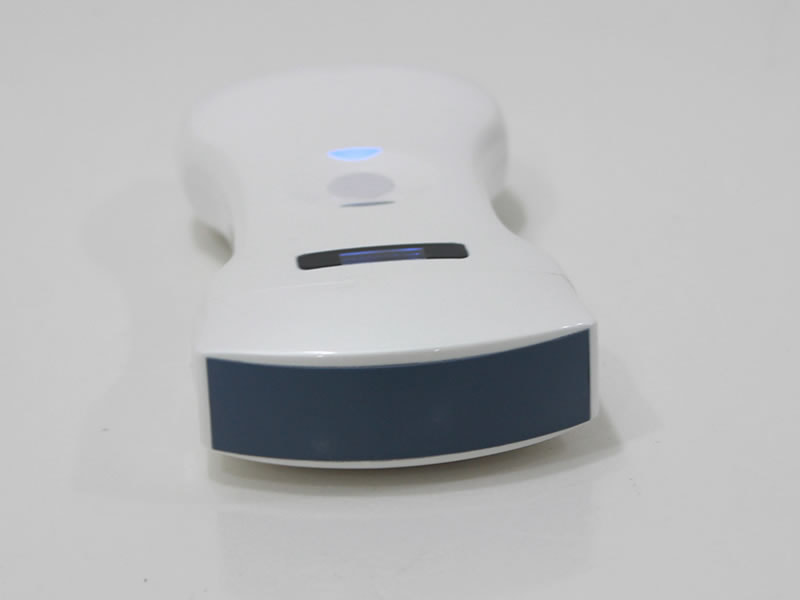

192 Element 3-In-1 Dual-Head Portable Ultrasound Scanner
Cprobe-6CPL
Categories: 192, Cardiology, Emergency Medicine, Imaging, Internal Medicine, Primary Care, Sports Medicine
Specifications
Specifications 2
Specifications
Weight
250g
Dimension
156×60×20mm
Charge
by wireless charger, 2 hours
Battery working time
3 hours
Display Depth
Convex 90/160/220/305mm, Linear 20/40/60/80mm
Working system
Apple iOS and Android, Windows
Frequency
R60 Convex/Phasedarray probe 3.2MHz/5MHz, L40 Linear probe 7.5MHz/10.0MHz
Specifications 2
Scan angle and width
Convex 45°, Phasedarray 60°, Linear 40mm
Image Adjust
Gain, DYN, Focus, Depth, Harmonic, Denoise
Noise reduction
0-1-2-3-4
Gain
30db-105db
Dynamic Range
40/50/60/70/80/90/100/110
Cineplay
Auto and manual, frames can set as 100/200/500/1000
Measure
Length, Area, Angle, Obstetrics
Wifi type
802.11g/20MHz/5G/450Mbps
Puncture assist function
The function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development.
