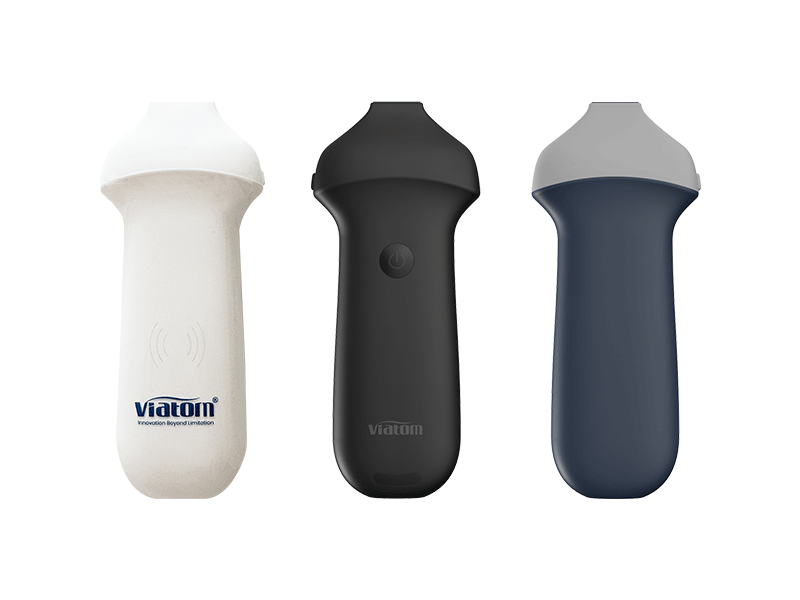

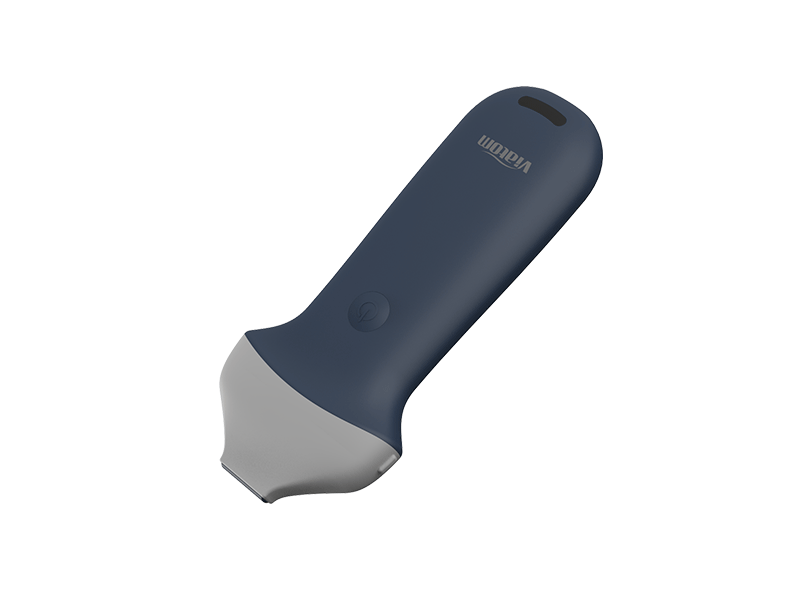

192 Element 16/20MHz Linear Probe Color Doppler Handheld Ultrasound
Cprobe-8P
Categories: 192, Cardiology, Color, Imaging, Linear Probe
Specifications
Specifications 2
Specifications
Weight
180g
Display mode
B, B/M, Color, PDI, PW
Gain
30db-105db
Battery working time
1.5 hours
Dimension
156mm×60mm×20mm
Supporting system
iOS, Android, Windows
Field of view
25
Scanning Depth
10/20/30/40mm, adjustable
Frequency
16/20MHz
Elements
192 elements
Channels
64 channels
Specifications 2
Scan mode
Electronic Array Linear scanning
Image Adjustment
Gain, focus, reverse pulse harmonics, noise reduction
Image gray scale
256 level
Noise reduction
0-1-2-3-4
Dynamic Range
40/50/60/70/80/90/100/110
Image/Video Storage
JPG, MP4, DICOM, store on mobile phones, Tablet PC
Dynamic Range
40/50/60/70/80/90/100/110
Measure
Distance, area, obstetrics and other
Power
By built-in lithium battery, 2200mAh, wireless charging can extend the working time indefinitely
Cineloop
Manual and automatic, playback frames to be 100/200/500/1000
WiFi Type
802.11n/2.4G/5G dual-band 450Mbps
Puncture Auxiliary Function
In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function
