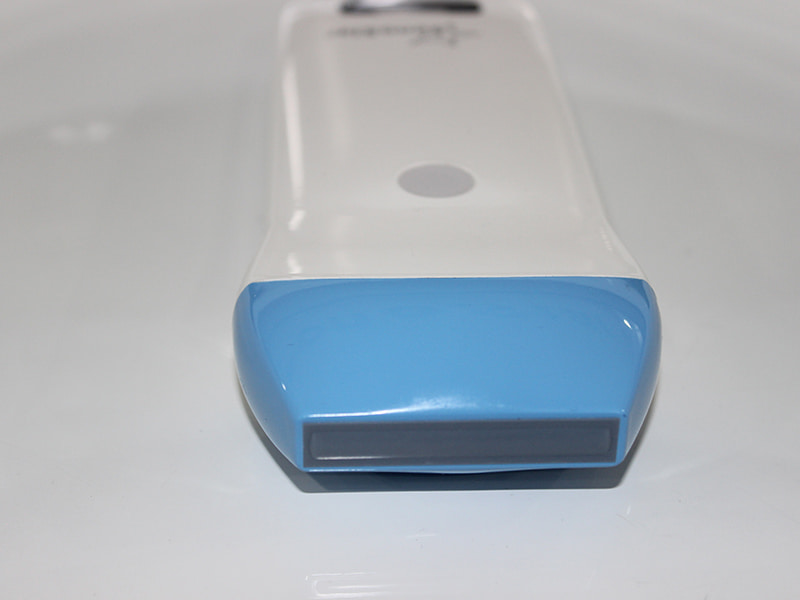

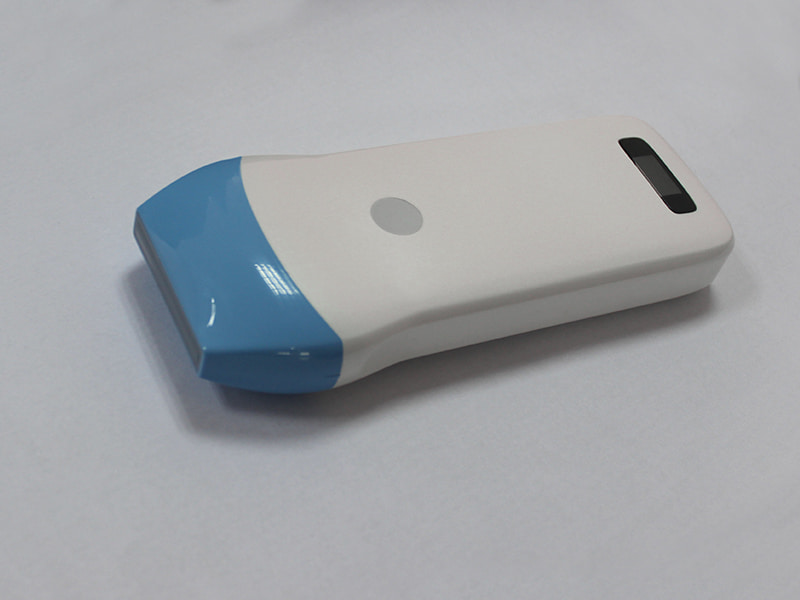

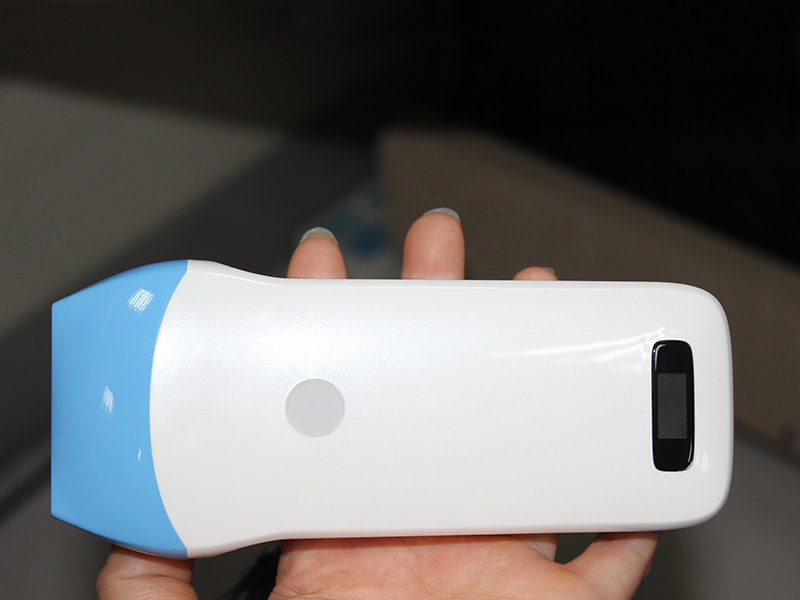

128 Elements 7.5/10MHz Linear Probe Handheld B/W Ultrasound
Uprobe-5L
Categories: 128, Black and White, Imaging, Internal Medicine, Linear Probe, Primary Care
Specifications
Specifications 2
Specifications
Weight
200g
Dimension
156mm×60mm×20mm
Battery working time
3 hours
Gain
30db-105db
Display mode
B, B/M
Supporting system
iOS, Android, Windows
Field of view
Linear L40
Scanning depth
Linear 20-55mm, adjustable
Elements
128 elements
Frequency
linear probe 7.5/10MHz
Specifications 2
Scan mode
Electronic Array, Electronic linear array scanning
Screen
Smart phone or tablet screen
lmage gray scale
256 level
Noise reduction
0-1-2-3-4
Dynamic Range
40/50/60/70/80/90/100/110
lmage/Video Storage
Store on mobile phones, Tablet PC
Measure
Distance, area, obstetrics and other
Power
By built-in lithium battery, 4200mAh
