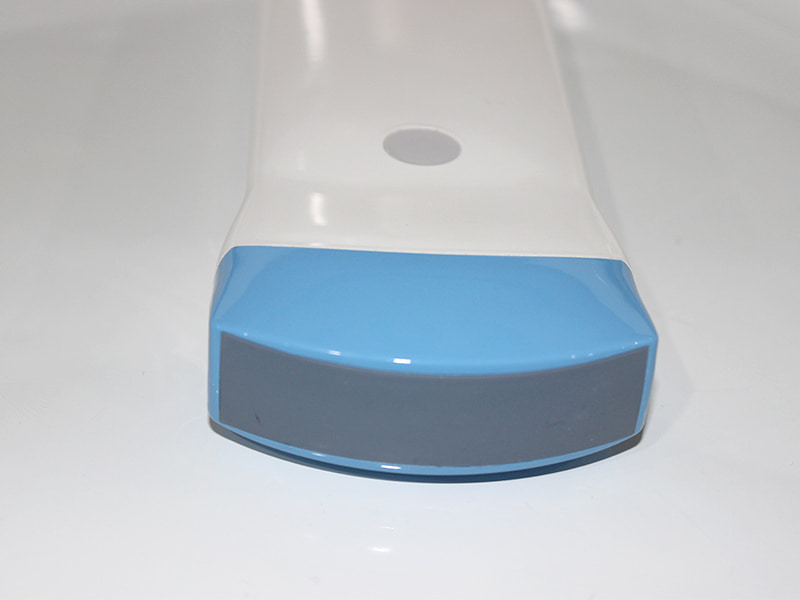

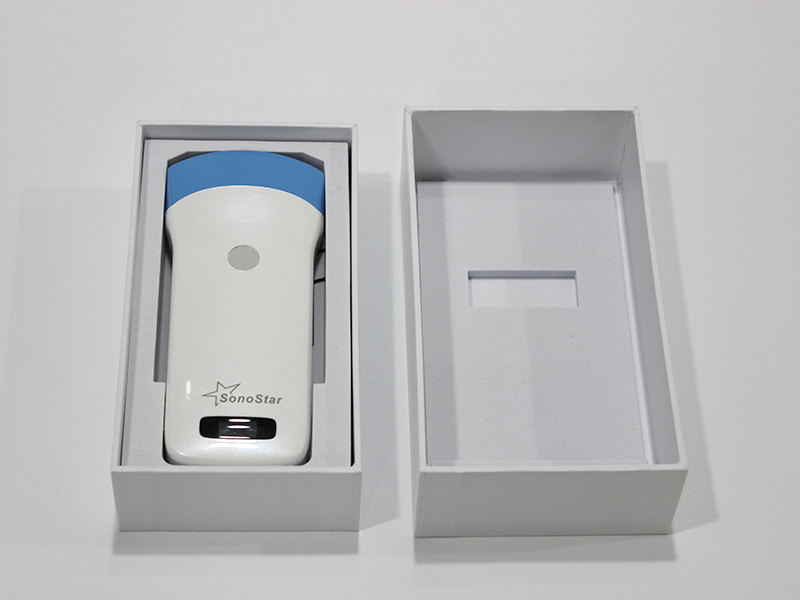

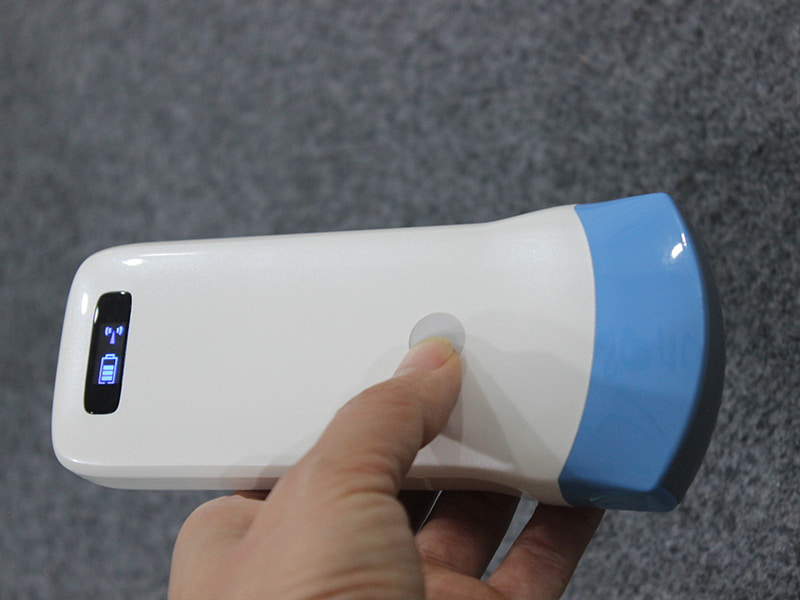

128 Elements Convex 3.2/5.0MHz Handheld B/W Ultrasound
Uprobe-5C
Categories: 128, Black and White, Convex Probe, Imaging, Internal Medicine, Primary Care
Specifications
Specifications 2
Specifications
Weight
250g
Dimension
156mm×60mm×20mm
Battery working time
3 hours
Gain
30db-105db
Display mode
B, B/M
Supporting system
IOS, Android, Windows
Field of view
Convex R60
Scanning depth
Convex 90-280mm, adjustable
Elements
128 elements
Frequency
Convex probe 3.2/5.0MHz
Specifications 2
Scan mode
Electronic Array, Electronic Convex array scanning
Screen
Smart phone or tablet screen
lmage gray scale
256 level
Noise reduction
0-1-2-3-4
Dynamic Range
40/50/60/70/80/90/100/110
lmage/Video Storage
Store on mobile phones, Tablet PC
Measure
distance, area, obstetrics and other
Power
by built-in lithium battery, 4200mAh
