In recent decades, the rapid development of portable and pocket ultrasound scanner has brought ultrasound examinations, traditionally limited to imaging departments and large hospitals, to physicians’ offices, community clinics, and even patients’ homes. Handheld ultrasound device are enabling clinicians in primary care to perform non-invasive diagnoses, enabling early detection and treatment.
This article focuses on the main application for handheld ultrasound in primary care, along with key purchasing considerations and product comparisons, to help primary care clinicians and healthcare decision-makers choose the right device.
Rapid Assessment and Diagnosis
Point-of-care ultrasound are small and easy to operate, allowing for real-time acquisition of organ morphology, structure, and blood flow at the bedside or in emergency situations. This helps primary care physicians quickly identify common conditions such as gallstones, hydronephrosis, or fatty liver, reducing the risk of missed or misdiagnosed diagnoses.
Early Diagnosis and Screening
Primary care doctors are increasingly using handheld ultrasound during follow-up visits because most devices now support wireless charging, so location is less of a concern. Bedside ultrasound scans can find early signs of heart failure, complications of cirrhosis, and peripheral artery disease.
Expedite Referrals and Care Coordination
Real-time imaging from portable ultrasound can be transmitted between mobile phones, computers, and iPads, facilitating more effective communication between primary care physicians and specialists. This leads to more rational initial triage and referrals, simplifies subsequent examination procedures, and ensures patients receive timely and effective intervention.
Increase Patient Engagement
During obstetric follow-ups, pocket-sized ultrasound devices can instantly display the basic structure and development of the fetus to pregnant women, facilitating the explanation of follow-up plans. This direct interaction facilitates better communication between doctors and patients, thereby improving patient understanding and adherence to treatment plans.
Reduced Healthcare Costs
Handheld ultrasound devices are inexpensive and easy to maintain. Patients can get quick initial screenings at clinics or from their family doctors without traveling to big hospitals or waiting in long lines.One device can examine multiple body areas, widening the range of services and cutting unnecessary referrals and repeat exams. This saves medical resources and reduces healthcare costs for patients.
Main Applications of Handheld Ultrasound in Primary Care
Deep Vein Thrombosis Ultrasound Evaluation
Deep vein thrombosis (DVT) of the lower extremities occurs when blood abnormally clots within the deep veins of the lower extremities, causing partial or complete blockage of the vein lumen and impairing venous return. Symptoms include swelling, pain, and hot skin in the lower extremities.
DVT is a common vascular surgical condition, frequently seen in patients who are bedridden for extended periods, during postoperative recovery, or after severe trauma. If left untreated, DVT can lead to serious complications such as pulmonary embolism (PE), and even be life-threatening.
In the United States, approximately one to three thousand adults develop deep vein thrombosis (DVT) or pulmonary embolism (PE) each year, resulting in up to 300,000 deaths annually. It is the third most common vascular disease after heart attack and stroke.
Ultrasound examination is the preferred method for diagnosing deep vein thrombosis (DVT) in the lower extremities. It is noninvasive, real-time, dynamic, reproducible, and highly accurate. Ultrasound images allow physicians to directly observe the presence of thrombi within the venous lumen, determine the location and extent of thrombi, and assess venous blood flow velocity, direction, and filling, providing crucial support for clinical treatment.
DVT Ultrasound Operation Guidelines
Device: Color Doppler ultrasound, Linear Probe, 7.5–10 MHz.
Scanning Method:
1. First, have the patient lie supine. Then, slightly externally rotate the affected hip joint, slightly abduct the thigh, and slightly flex the knee. This relaxes the limb and makes the veins easier to image.
2. Scan from proximal to distal: external iliac vein → common femoral vein → superficial femoral vein → deep femoral vein → great saphenous vein.
3. Then, turn the patient to a prone position and assess the iliac veins and lower leg veins. Use longitudinal and transverse sections to assess the vessels.
4. Use B-mode ultrasound to examine vessel size, vessel wall integrity, and the presence/echo intensity of thrombi. Use color Doppler to observe intraluminal blood flow, filling defects, and reflux. If blood flow is weak or difficult to visualize, squeeze the lower leg or gently compress the distal end to promote venous return.
DVT Ultrasound Imaging

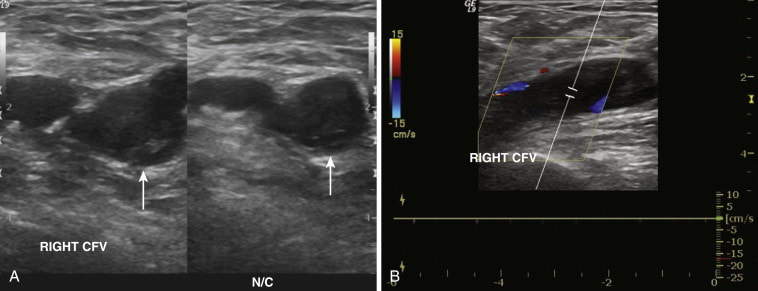

1.Acute thrombus appears as a hypoechoic mass filling the vessel lumen, with color flow reduced or absent.

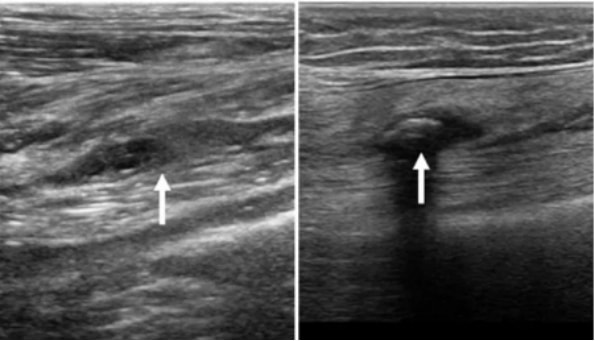

2.Subacute or chronic thrombus appears as a medium‑echogenic mass in the lumen, with small channel‑like, dot‑like, or filamentous color flow signals visible within.
Color and Spectral Doppler Applications in DVT
Color Doppler: Uses color changes to display the direction and relative velocity of blood flow, helping to identify interruptions or abnormalities in blood flow caused by thrombosis.
Spectral Doppler: Analyzes the frequency and velocity of blood flow, assessing its continuity and velocity variations.
Gallbladder Ultrasound Examination
Gallbladder ultrasound is a safe, non-invasive imaging test. Primary care physicians can use it to evaluate patients with right upper quadrant pain, jaundice, or suspected gallstones and cholecystitis. By mastering basic ultrasound probe placement and image recognition, physicians can promptly identify common gallbladder pathologies in community clinics and determine whether further testing or referral is warranted.
Gallbladder Ultrasound Operation Guidelines
Device: B-Mode ultrasound, Convex Probe, 2.5-5MHz.
Preparation: Fast for at least 8 hours.
Scanning Method:
1. The patient lies supine or on their side. First, place the probe along the lower edge of the patient’s right costal margin, with the probe marker pointing towards the patient’s head.
2. Next, slide the sensor left and right along the costal margin until the gallbladder appears. The gallbladder will appear as a hypoechoic, elongated or round structure.
3. Slowly rotate and tilt the probe with fine movements until the gallbladder is along its true long axis.
4. Also, in the transverse direction (short axis view), rotate the probe 90°counterclockwise from the longitudinal direction, with the sensor marker pointing towards the patient’s right side, to observe the gallbladder.
5. From the transverse view, the gallbladder appears round. Scan the entire gallbladder to ensure complete visualization.

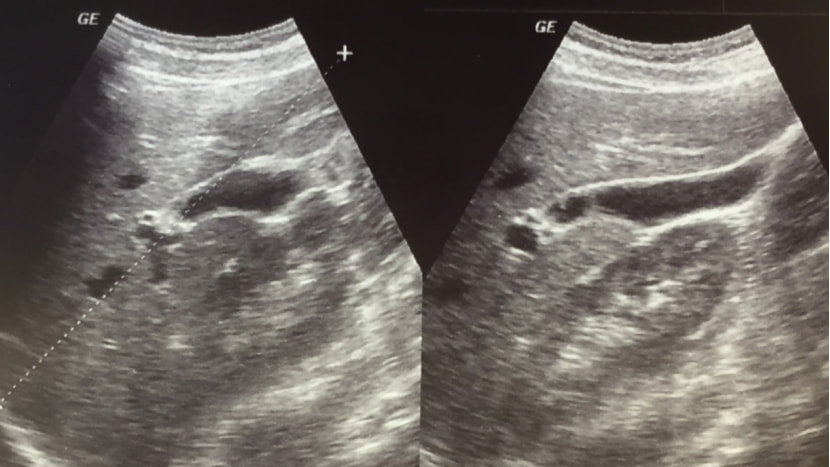

Normal Gallbladder Ultrasound Imaging
1. The gallbladder wall is thin (<3 mm).
2. The shape is pear-shaped along its long axis, and circular or elliptical in cross-section.
3. The size is usually 5-8 cm long and 3-4 cm wide.
4. The gallbladder cavity is anechoic (dark), with posterior acoustic enhancement and a clear, smooth outline.
5. The echo intensity is slightly stronger than that of the liver; the gallbladder wall is regular, and echoes are visible at the edges, presenting a typical cystic structure.
Lung Ultrasound Examination
Lung ultrasound has no radiation, is low-cost, fast and portable, and can provide real-time assessment of pulmonary structures. Compared with chest X‑ray, lung ultrasound has higher sensitivity and similar specificity for detecting pleural effusion, pneumonia, pneumothorax, and pulmonary edema.
Ultrasound Diagnosis of Pneumothorax
When air enters the pleural cavity, it can cause lung collapse and impair ventilation, resulting in a pneumothorax. Pneumothorax should be suspected if no lung sliding is seen on the examined side during ultrasound examination. Bedside ultrasound can detect small or moderate pneumothoraces and can be used to rapidly decide on conservative management or thoracentesis according to clinical severity.
Ultrasound Signs of Pneumothorax
1. Loss of lung sliding
Normally, the visceral and parietal pleura slide with respiration, seen on ultrasound as lung sliding. In pneumothorax, the pleural layers are separated by air and lung sliding is absent. On M-mode, this appears as a barcode pattern.
2. Pleural line and A-lines present, B-lines absent
In pneumothorax, a clear pleural line and A-lines are often seen, while B-lines are absent. This pattern suggests air in the pleural space.
3. Lung point
The lung point is the junction between sliding and non-sliding pleura. It is highly specific for pneumothorax, but may be absent in large pneumothoraces.
4. Loss of pleural pulse
Cardiac pulsations normally transmit to the pleura as a subtle pleural pulse. This pulse is often absent in pneumothorax.
Why Choose to Purchase Handheld Ultrasound From Medtribs?
High Image Quality
Medtribs offers handheld ultrasound devices equipped with advanced image processing algorithms. These devices deliver high-resolution images, helping physicians differentiate structures and reliably identify lesions in a variety of clinical applications. For example, our Cprobe-6CPL 192 element dual-probe ultrasound is a comprehensive solution.
Flexible Probe Options
Clear and Honest Pricing
One price, no bundled charges, no hidden fees. We have a user growth program that offers even better discounts; contact us to learn more. Bulk discounts are also available for multiple purchases.
Personalized and Secure Packages
We offer ODM customization services. We can customize packaging materials and user manuals to your needs. In addition, we offer optional accessories such as storage boxes and puncture stents.
After-Sales Support
All Medtribs handheld ultrasound devices come with an 18-month warranty. Our professional after-sales team is always ready to answer any questions and provide online technical support.
Medtribs Select
Conclusion
Handheld ultrasound is reshaping primary care practice. Portable, user-friendly, and powerful, these devices let primary care clinicians obtain real-time imaging at the point of care, enabling earlier diagnosis and screening, improved diagnostic accuracy, and faster coordination of referrals and follow-up. Ready to explore the best solution for your practice? Visit Medtribs to compare products and learn how we stand out in the market.
