Guide to Gynecology Ultrasound for Clinics: Buying & Usage Tips

OB-GYN (Obstetrics and Gynecology) services are more visible now.

Adoption of portable units has jumped by over 35%[1] in rural and underserved care while bringing imaging to the bedside and outreach. That puts gynecology ultrasound into more visits.

Among all clinical uses, OB-GYN remains the leading application for these devices. When deeper insights are required, teams can add a focused TVUS (transvaginal ultrasound) for diagnosis.

The fact is, patients are losing patience.

Have you noticed that patients are waiting too long for checks?

Are traditional fixed ultrasound devices causing you to miss out on opportunities for on-the-spot diagnoses?

If you choose a more efficient portable device, how many more patients could your doctors see each day?

This guide is to help clinics turn abstract concepts into real cases and choose efficient portable ultrasound devices.

Roles and Applications of Ultrasound in Gynecology

Gynecological Disease Diagnosis and Abnormal Symptom Assessment

Ultrasound is the first-line test for many symptoms. Essentially, it helps assess heavy bleeding, pelvic pain, and adnexal masses. A gynecology ultrasound can be accomplished in a clinic, and a portable ultrasound scanner brings this to bedside care. Transvaginal Doppler ultrasound is an important diagnostic tool for differentiation. Here are some gynecological diseases that can be diagnosis by ultrasound technology:

Endometriosis:

Endometriosis can cause menstrual pain, chronic abdominal pain, and difficulty conceiving. Ultrasound can aid in the diagnosis of endometriosis, including its presence in the uterine ligaments, colon, and bladder wall.
TVUS is an accurate method for identifying ovarian endometriosis and can help surgeons determine whether surgery is necessary. For deep endometriosis, TVUS is superior to MRI in locating anatomical sites.[2]

Ectopic pregnancy rupture:

Acute abdomen, abdominal pain, which may be confused with ovarian corpus luteum rupture. Ultrasound is key to early and accurate diagnosis, especially for tubal rupture commonly occurs at 6–8 weeks of pregnancy. The mass in the adnexal region is round or irregular in shape, with unclear boundaries and chaotic internal echoes, appearing as an uneven hypoechoic area.

In some cases, the embryo, primitive heartbeat, and pseudocyst may be visible, with fluid-filled dark areas in the uterovesical pouch and pelvic cavity. Blood flow patterns primarily exhibit “dot-like” and “strip-like” characteristics (58.06% and 37.10%, respectively), with diverse blood flow spectrum types (high-resistance type is common). Blood flow parameters (RI, PI, PSV), ovarian volume, and fluid-filled dark area depth are all lower than in the ovarian corpus luteum rupture group. ^[3]

Ovarian corpus luteum rupture:

The ovarian shape is irregular, with increased volume. The mass is irregular in shape, with blurred borders and chaotic internal echoes, presenting as an uneven hypoechoic area. Fluid-filled dark areas are visible around the mass, in the uterovesical pouch, and in the pelvic cavity. Blood flow patterns are predominantly “semi-circular/circular” (92.00%), and blood flow spectra are predominantly extremely low/low resistance type (90.00%). [3]

Ovarian torsion:

Sudden localized lower abdominal pain after activity or a change in body position, with or without nausea and vomiting. Reduced or absent ovarian blood flow on color Doppler ultrasound is an important feature of torsion, but normal blood flow cannot completely rule out torsion. [1]

Postmenopausal Bleeding:

Vaginal bleeding after menopause is a common symptom of endometrial cancer. Ultrasound is used to assess changes in endometrial thickness, such as hyperplasia or malignancy.

A thin endometrial echo (≤4 mm) has a negative predictive value for excluding endometrial cancer exceeding 99%.

If a thin and clear endometrial echo cannot be adequately identified, or if the endometrial measurement exceeds 4 mm, further testing should be considered, such as endometrial sonohysterography, hysteroscopy, or endometrial sampling.

But there is a limitation: TVUS is not suitable for endometrial cancer screening in asymptomatic postmenopausal women. Certain types of endometrial cancer (e.g., type II) may occur even when the endometrial thickness is less than 3 mm; therefore, persistent or recurrent bleeding should undergo histological evaluation regardless of endometrial thickness.[4]

Pelvic Inflammatory Disease (PID):

It may cause pelvic pain, tubal fluid accumulation, or abscess formation.
Ultrasound aids in diagnosis, particularly TVUS, which can more clearly visualize fine structures, including tubal fluid accumulation or abscess formation.

Fertility Assessment and Assisted Reproduction

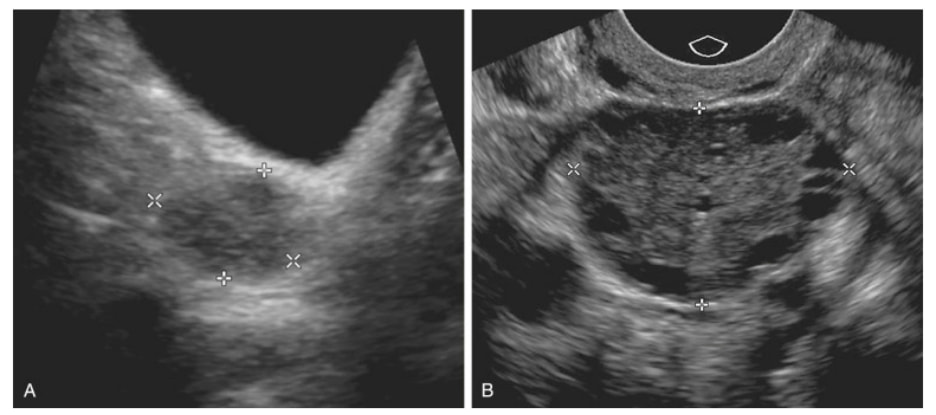

Ultrasound counts antral follicles and tracks ovarian stimulation. It is used to assess pelvic anatomy in women with fertility issues and evaluate ovarian reserve parameters for reproductive treatment. Gynecology ultrasound also checks tubal patency with hystero-salpingo-contrast sonography and reviews the endometrium before transfer. Such steps guide dosing and timing in “in vitro fertilization.”

TVUS is crucial for guiding egg retrieval procedures in assisted reproductive technology. Hysteroscopic ultrasound (injection of saline into the uterine cavity while performing ultrasound examination) has higher sensitivity than hysteroscopy in detecting uterine abnormalities in women with infertility, particularly in diagnosing endometrial polyps, submucosal uterine fibroids, uterine malformations, and intrauterine adhesions, with high sensitivity and specificity.[5]

Screening and Cancer Assessment

Ultrasound assesses risk when symptoms or masses of cancer are present.

1.Uterine Fibroids:

May cause heavy menstrual bleeding and abdominal pain. Ultrasound examination can rule out or diagnose uterine fibroids and assess their location, size, and number.

2.Ovarian Cysts and Tumors:

May be asymptomatic (often detected during routine health screenings) or accompanied by abdominal pain, menstrual changes, abnormal uterine bleeding after menopause, abdominal distension, etc. Ultrasound is commonly used for diagnosing ovarian cysts, used to assess the size, composition (cystic, solid, or mixed), unilateral or bilateral nature, presence of septa, nodular or papillary structures on the cyst wall, and the characteristics of the cyst fluid. Color Doppler ultrasound can detect blood flow within and around the cyst, aiding in the assessment of benign or malignant risk.

3.Benign or malignant risk assessment:

Simple cyst: Ultrasound shows a cystic anechoic area, thin cyst wall, no solid components, no septa, and no blood flow signals.

Multilocular cysts: Cysts with multiple septa, abnormal echoes, or cyst wall thickness ≥3 mm.

Hemorrhagic cysts: When cysts contain dense punctate echoes, hemorrhagic cysts (such as corpus luteum cysts) should be considered first. Most are ≤5 cm in diameter and may change with the menstrual cycle or resolve spontaneously.

Teratoma: When the cyst contains dense punctate echoes accompanied by solid hyperechoic components, it is often an ovarian teratoma. Ultrasound diagnosis has a sensitivity of 58% and specificity of 99%.

Increased risk of malignancy: Cystic-solid cysts, cysts with papillary projections on the inner wall, cysts with a diameter ≥10 cm, cysts with abundant internal blood flow, bilateral cysts, multilocular cysts, and cysts with ascites indicate an increased risk of malignancy. [6]

Monitoring Pelvic Organ Prolapse

Transvaginal ultrasound (TVUS) and transperineal ultrasound can be used to assess the anatomical features of pelvic organ prolapse, as well as conditions such as urinary incontinence or fecal incontinence.

Guidance during Interventional Surgery

Ultrasound guides many procedures. It is standard for transvaginal oocyte retrieval. Not only that, but it also guides tumor biopsy and drainage of pelvic abscesses. Ultrasound helps localize or remove difficult intrauterine devices (small, T-shaped contraceptives) in the office.

Common Types of Gynecology Ultrasound and Their Applications

Transvaginal Ultrasound (TVUS)

Transvaginal ultrasound gives high-detail views of the uterus, endometrium, ovaries, and adnexa. It is often the best first test for bleeding, pain, or a suspected mass. It is also key for early pregnancy and cervical length assessment. Comfort, consent, and clear technique matter.

Pelvic Ultrasound

A transabdominal pelvic scan gives a wide overview of the pelvis. It helps with pain, abnormal bleeding, and masses, and is useful when the uterus is large. Many teams start with this and then add TVUS for detail. That flow is common in gynecology ultrasound practice.

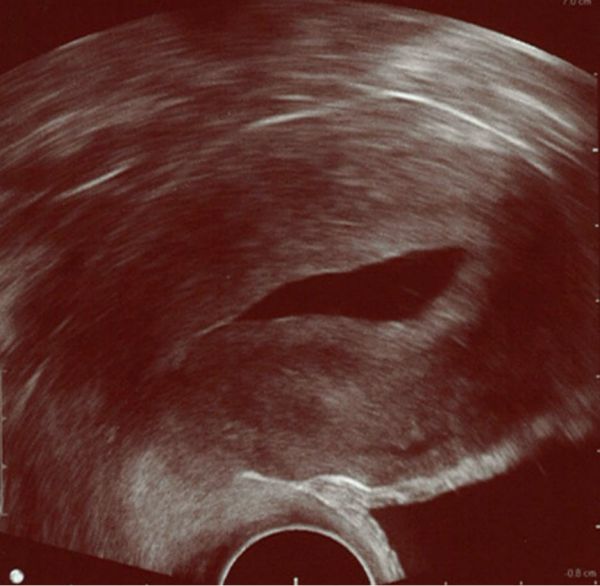

Cervix Fluid Ultrasound (Sonohysterography)

It is a technique used during ultrasound examinations to dilate the endometrial cavity with saline solution. This technique allows for a single-layer assessment of the endometrium and enables ultrasound physicians to reliably distinguish between focal endometrial lesions and diffuse endometrial lesions.

Key Considerations for Buying Gynecology Ultrasound Devices

What to Check before You Buy?

Image Resolution

When purchasing gynecological ultrasound equipment, image resolution is the primary consideration.

Generally speaking, transvaginal ultrasound examinations provide higher resolution and clearer images than transabdominal ultrasound examinations, because of high frequency transducer, closer to the inspected area, and not affected by a distended bladder.

The components of ultrasound imaging systems age with prolonged use, which may lead to a decline in image quality and affect the accuracy of diagnosis. Image quality evaluation indicators include imaging depth, contrast resolution (representing the ability to detect small lesions), harmonic imaging, color blood flow imaging sensitivity, and blood flow velocity measurement accuracy.

Probe Type & Frequency Coverage

Probe type and frequency coverage are also important considerations. Abdominal probes are suitable for routine gynecological examinations, while transvaginal probes, being closer to the scanning area, provide higher-resolution images and are particularly suitable for detailed examinations of early pregnancy, gynecological tumors, and lesions. High-frequency probes, although limited in penetration depth, significantly enhance image detail. It is recommended to choose a dual-probe configuration with curved and transvaginal probes to achieve comprehensive clinical applications.

Supported Imaging Modes

Support for a wide range of imaging modes significantly impacts the practicality of the device. Common functions such as two-dimensional imaging (B-mode), color Doppler flow imaging (CDFI), energy Doppler, and pulse wave Doppler (PW) should be fully equipped. These modes assist physicians in observing tissue structure and hemodynamics, aiding in the comprehensive assessment of gynecological conditions.

Data Management

The data management system should support storage, retrieval, transmission, and backup, be compatible with DICOM standards, and enable seamless integration with hospital information systems (HIS) and radiology information systems (RIS) to enhance workflow efficiency and data security.

User Interface, Training Support, and After-Sales Support, and More

In terms of user interface design, the system should be intuitive and easy to operate, suitable for both physicians and technicians to master quickly. Comprehensive training support and high-quality after-sales service should be provided to ensure the long-term stable operation of the device and promptly address technical inquiries and maintenance needs.

The device is equipped with a high-resolution imaging system, supports multiple imaging modes, covers a wide frequency range, and meets diverse clinical needs in gynecology.

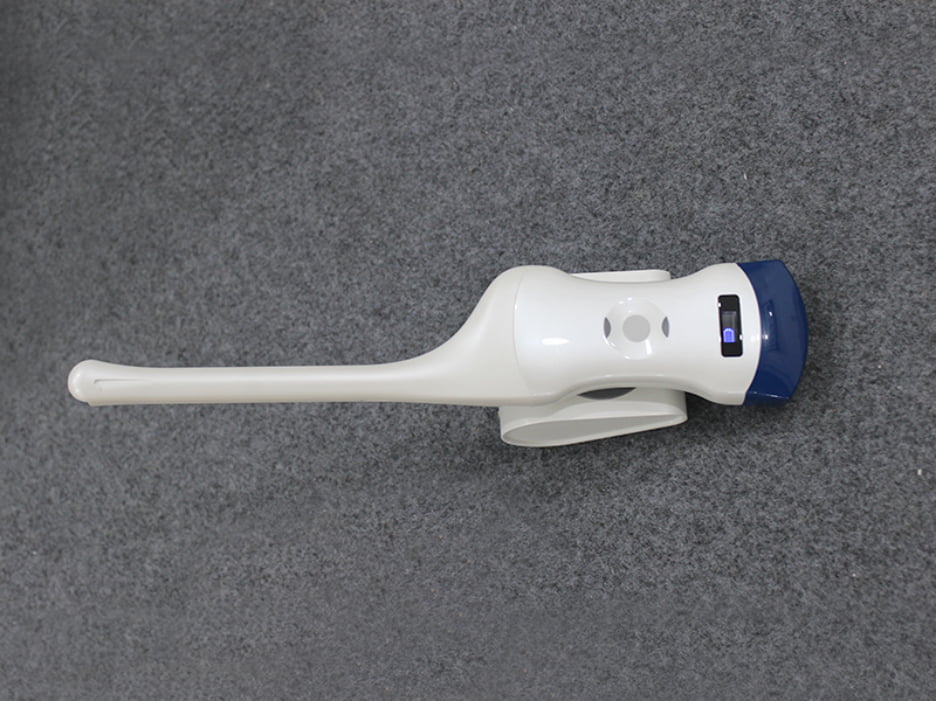

Why the 128-Element Dual-Head Fits

128-element ultrasound diagnostic instrument excels in all the above aspects.

It is dual-head, so you cover the abdomen and endovaginal work with one unit. The convex side runs at 3.2/5.0 MHz with depths to 305 mm; the transvaginal side runs at 6/8 MHz with depths to 120 mm.

Modes include B, B/M, and color combos B+Color, B+PDI, and B+PW.

Image tools include TGC, dynamic range, harmonic, and denoise. Cine review stores 100-1000 frames.

Measurements include distance, area, and obstetrics.

iOS, Android, and Windows are supported.

Battery life is about 3 hours. That suits the routine transvaginal ultrasound in the clinic.

It offers convenient data management solutions and an intuitive user interface, complemented by professional training and after-sales support teams to ensure smooth use and maintenance, making it an ideal choice for gynecological ultrasound equipment.

This portable ultrasound scanner also comes with low MOQ from 1 unit, wholesale pricing, and many probe options. One-piece drop shipping with immediate dispatch is available.

Practical Operation Advice and Risks to Avoid

Charge the unit, update the app, and verify iOS/Android/Windows support.

Full bladder for transabdominal, and empty bladder for transvaginal.

Use a single-use sterile transducer cover and sterile gel for every transvaginal exam.

Perform high-level disinfection of intracavitary probes between patients.

Monitor TI and MI, follow ALARA, and keep dwell time short.

Avoid routine Doppler in the embryonic period. If indicated, keep exposure brief.

Use only the modes you need (B/M/Color/PDI/PW), and avoid unnecessary high power.

Optimize with TGC, dynamic range, harmonics, and denoise, and avoid over-gain.

Capture cine loops as needed, and de-identify images before sharing/export.

Inspect probe, cable, and cover before use. Clean scanner, cables, and controls after use.

FAQs about Gynecology Ultrasound

How to Read an Ultrasound

Start with the indication and exam type. Check which probe and approach were utilized. Find the on-screen orientation marker so left and right are clear. Review the uterus and ovaries in order, and then note measurements and the impression. Images from a portable ultrasound scanner follow the same conventions, whether it is a gynecology ultrasound or not.

Is a Pelvic Ultrasound While Menstruating Okay?

Yes. It can be done.

What Do Ultrasound Red And Blue Mean?

That is color Doppler. Red usually shows flow toward the probe. Blue shows flow away. Color can invert with settings, and aliasing can mix red and blue near fast flow.
